Tuesday, July 8, 2014

Season One Dash Electronics - Message Center

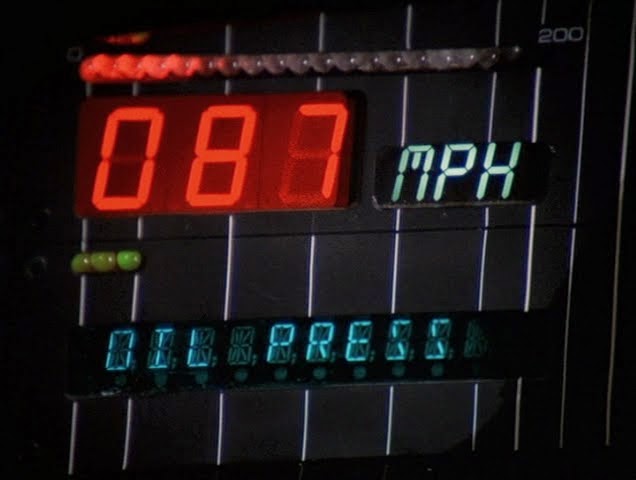

OIL PRESS

F. TURBINE

FUEL FLOW

RANGE MI.

HEADING N.E. (Compass?)

CALIBRATE

INLET TEMP

DEG. LAT.

LATITUDE [& LONGITUDE]

[TRAJEC]TORY

[DEGR]EE

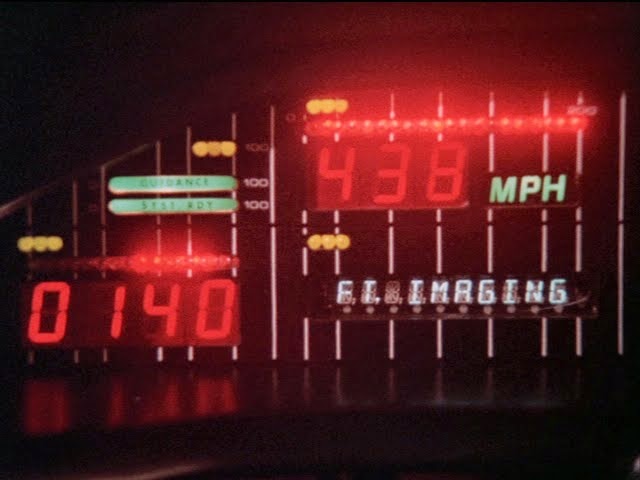

FT. IMAGING

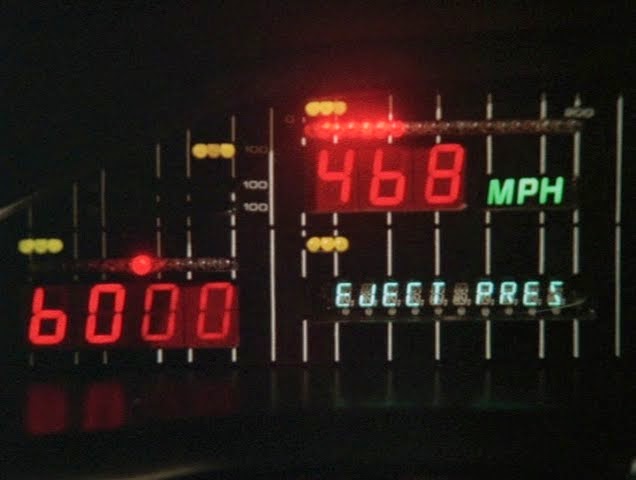

EJECT PRES.

[CALI]BRATE
The message display is a 19-segment, 10 character VFD (Vacuum Florescent Display)
Myth: Message center are LEDs
DN1018

All Knight Rider images are Copyright Universal Studios Home Entertainment
Posted by at

3 comments:

  1. UnknownOctober 3, 2018 at 8:39 AM

    Nice post! Are you sure these are 19 segments? I would say 16 segments + comma.

    ReplyDelete
  2. Patrick KenneyOctober 3, 2018 at 9:17 AM

    It would depend what is included in the total count, yes. It is 16 segments in the character, plus two segments in the comma and the one segment circle under the character is where I get 19 segments.

    ReplyDelete
  3. MichaelMarch 5, 2024 at 4:30 PM

    Anyone knows which VFD this is ?

    ReplyDelete
